Competitive Analysis



Logic Product Development Project



Device                   TC7SZ00FU
Function               2 Input NAND Gate

Datasheet             local  online

Competitor           Toshiba

Package                5-SSOP

Die Size                 570u X 486u       Thickness   114u

Die Orientation    Active Surface Down

Technology         VCC 5V to 2V     7 volts is allowed.





Die Photo

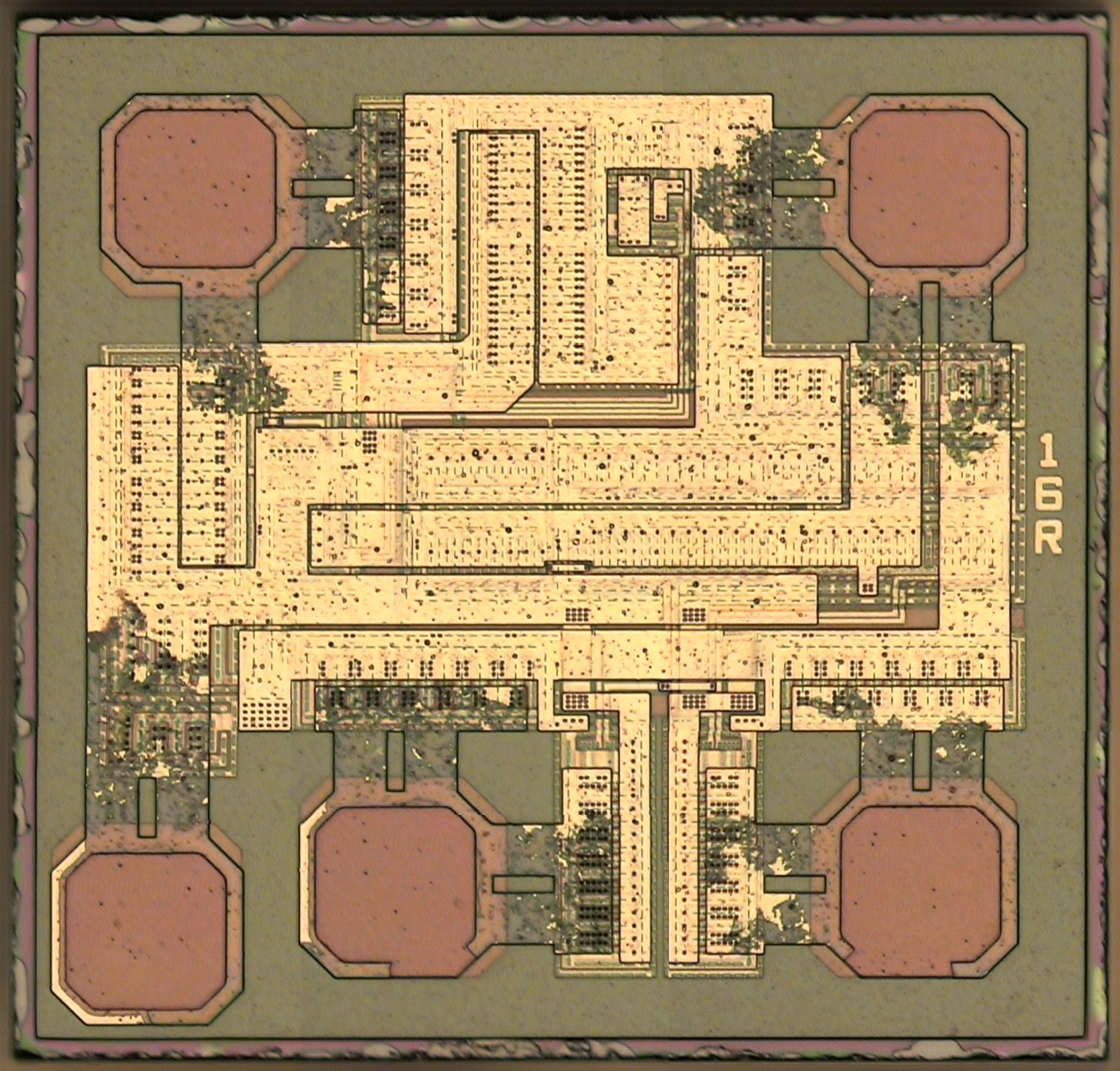

Die Overview



Observations:
No active circuits under bond pads.












Die X-rays    Toshiba  TC7SZ00FU















Top of Package
Looking Through Die

Die is Down



Observation:

Large die mounting pad associated with pin three.

















Side View













Angled View










Package Details    Toshiba  TC7SZ00FU















Top View

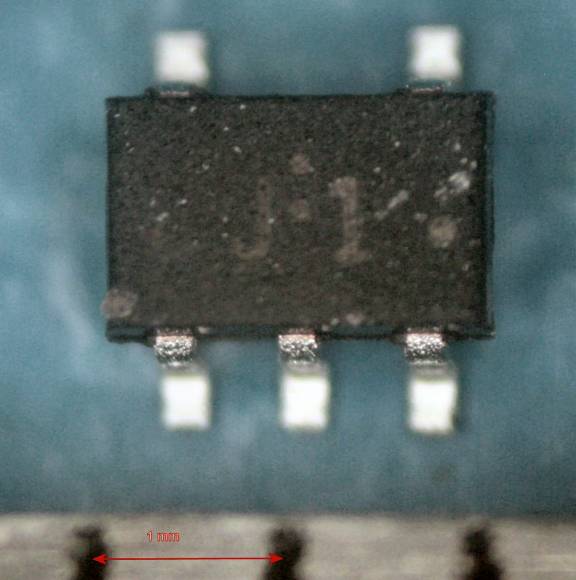

Size relative to 1mm on ruler.

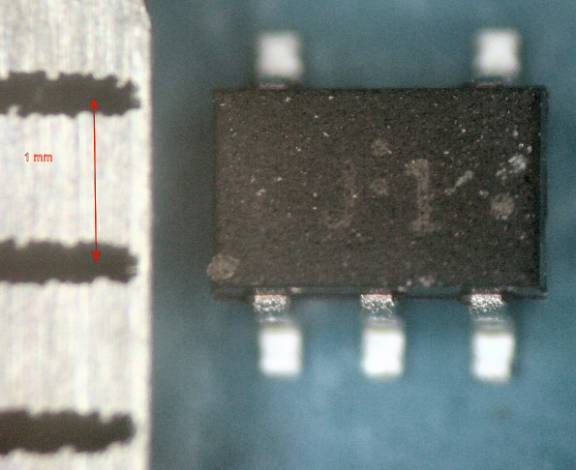

Top View l

Alternate

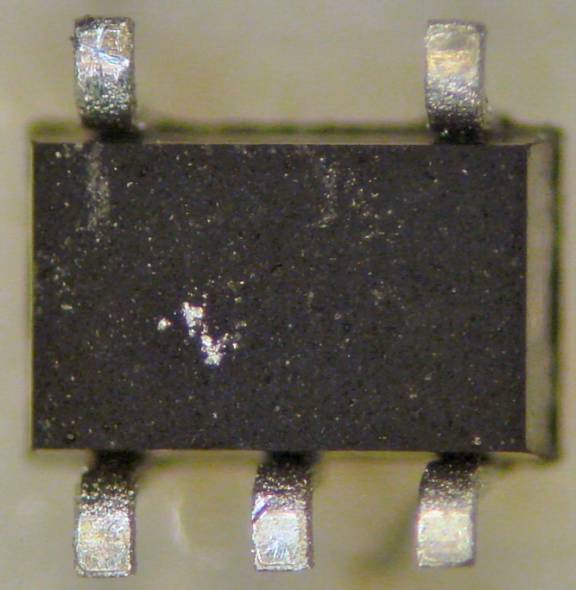

Bottom
