Competitive Analysis



Logic Product Development Project



Device                    SN74LVC1G08DRYR
Function                2 Input Positive AND Gate

Datasheet              local  online

Competitor            TI

Package                 6-SON

Die Size                  500u X 486u    Thickness 198u

Die Orientation     Active Surface Up

Technology           LVC  5.5V to 1.65v





Die Photo



















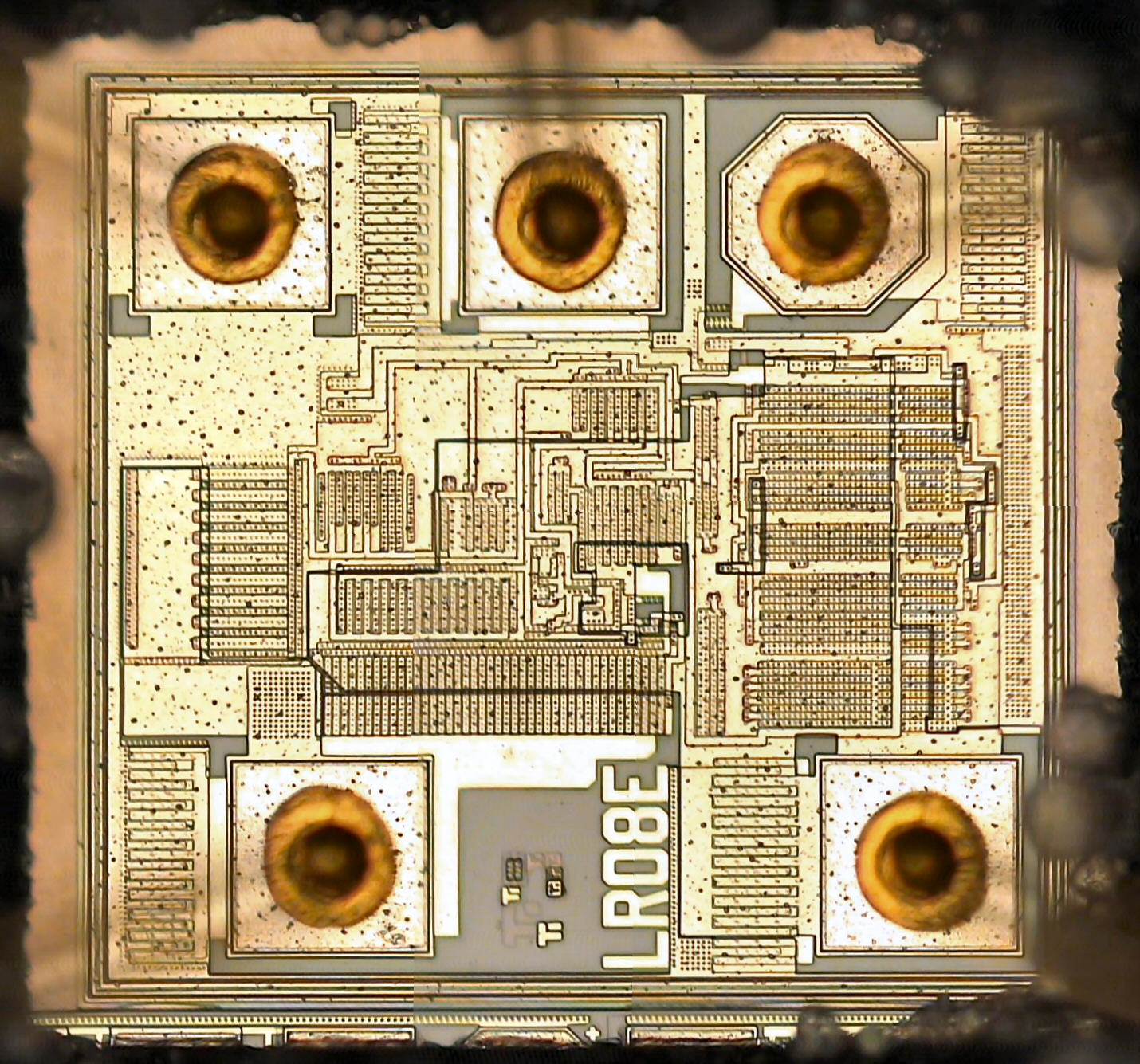

Die Overview



Observations:
No active circuits under bond pads.












Die X-rays      TI    SN74LVC1G08DRYR















Top View















Side View

Observation:

Notice lack of layers or vias as compared to other surface mount packages.











Angled View








Package Details    TI   SN74LVC1G08DRYR

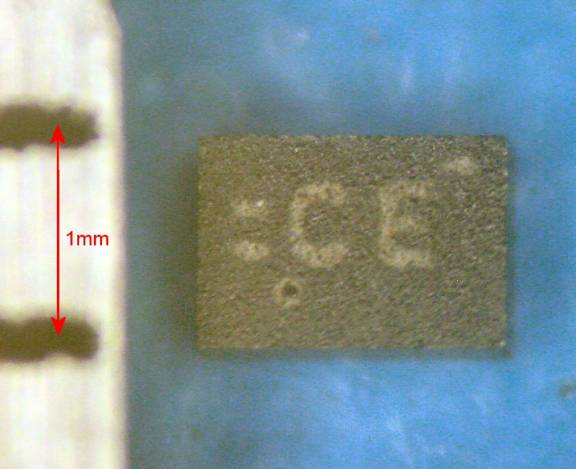

Top View





Size relative to 1mm on ruler.

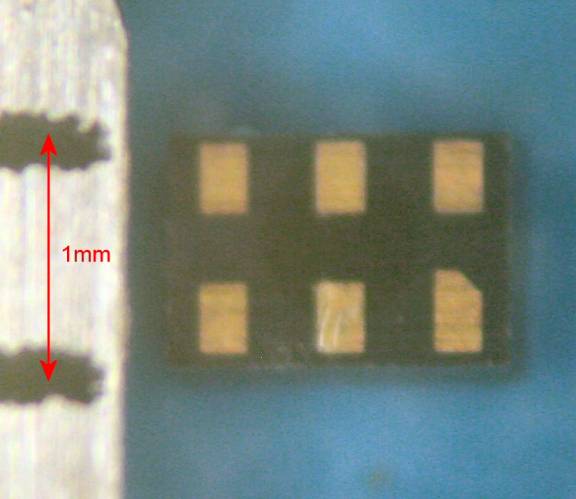

Bottom
