Competitive Analysis



Logic Product Development Project



Device                       SN74AUP1GOOYZPR
Function                   2 Input Positive NAND

Datasheet                 local  online

Competitor              TI

Package                   5DSBGA

Die Size                    1354u X 854u    Thickness  260u

Die Orientation       Active Surface Down

Technology            AUP   3.6V    0.8V

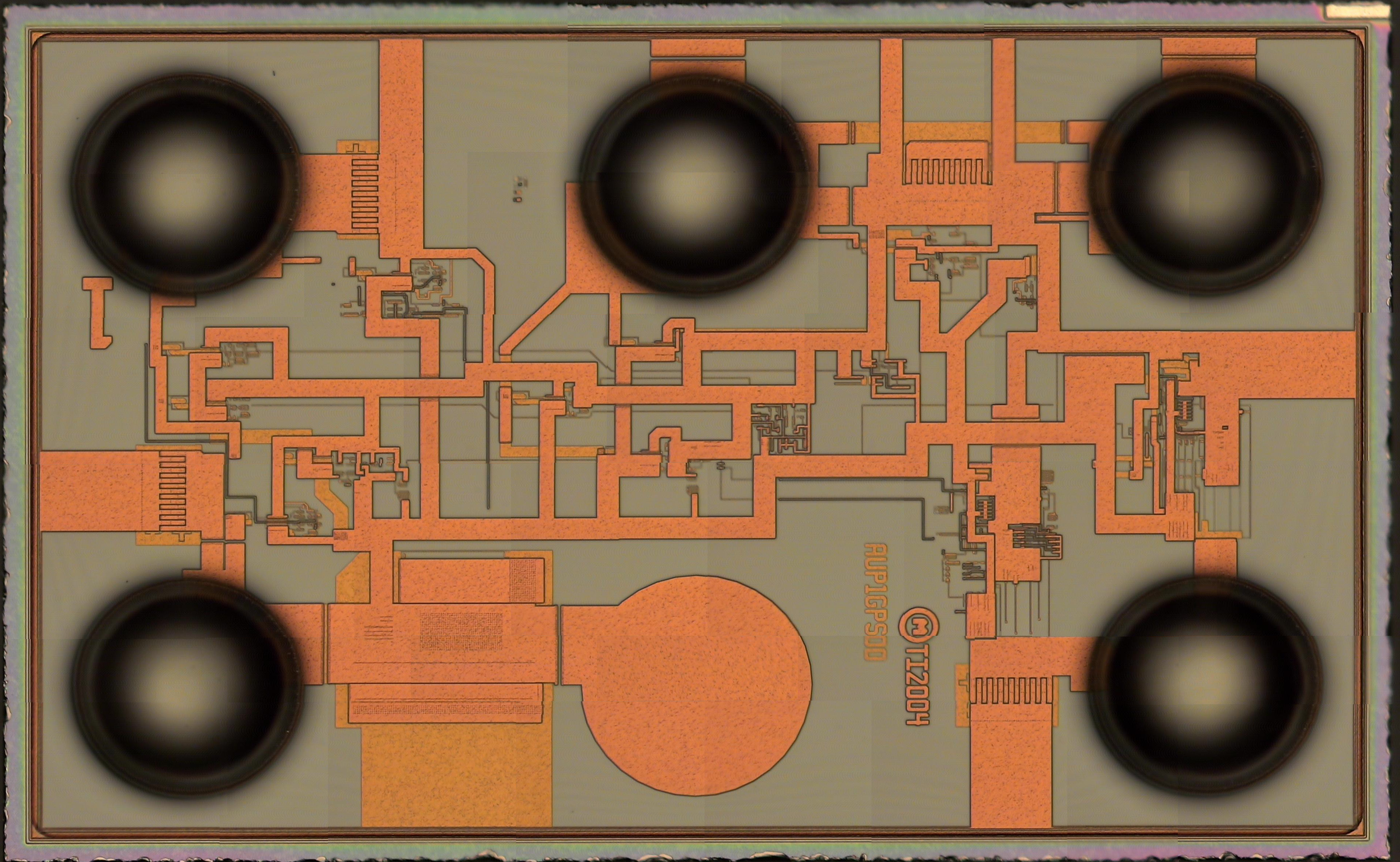

Die Photo

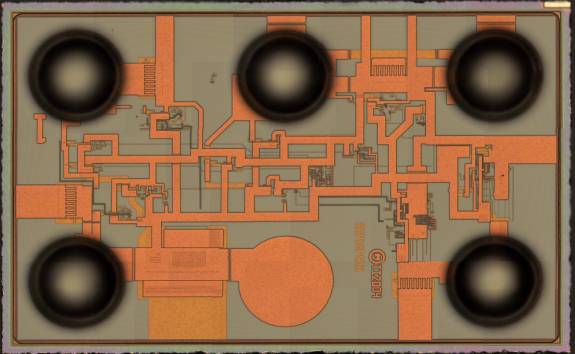

Die Overview



Observations:
No active circuits under bond pads.
Circa 2004.
Large amount of unused space as die is much larger for chip scale package.












Die X-rays        TI   SN74AUP1GOOYZPR

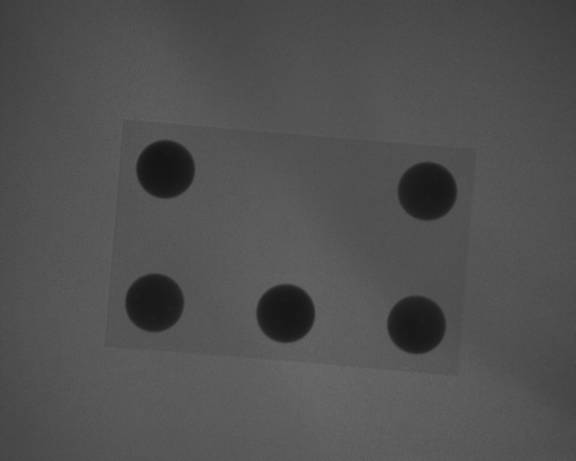

Top View

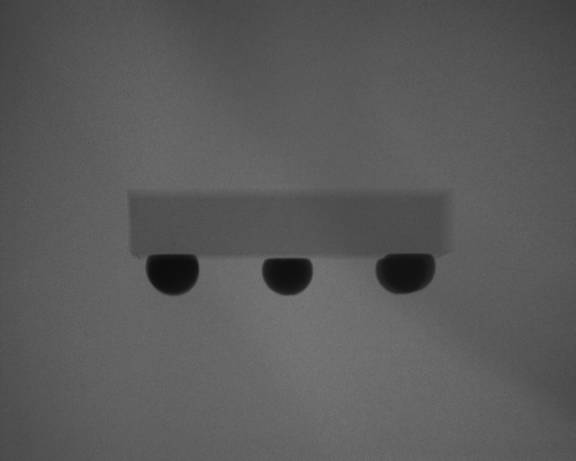

Side View

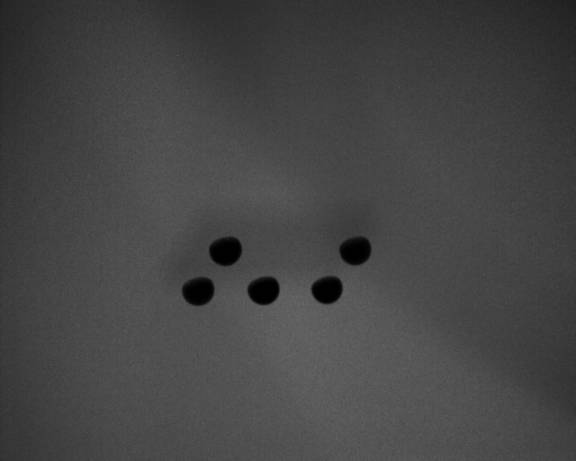

Angled View










Package Details    TI   SN74AUP1GOO

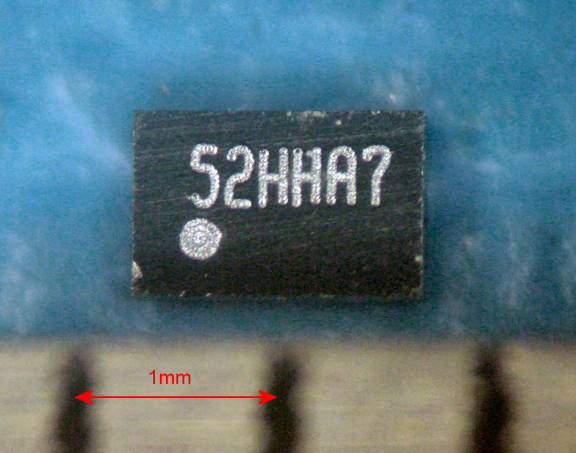

Top View





Size relative to 1mm on ruler.

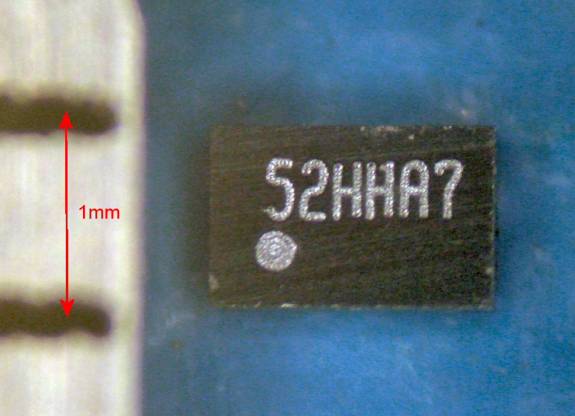

Top View l

Alternate

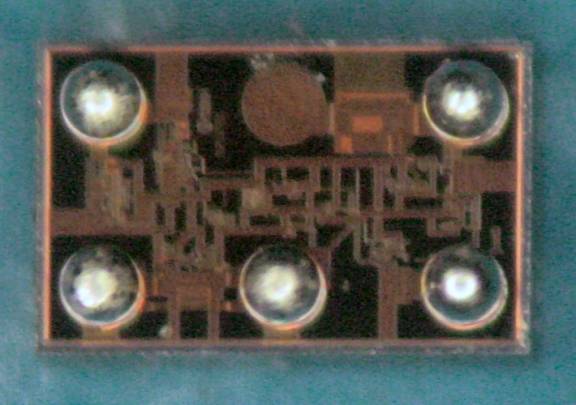

Bottom
