Competitive Analysis



Logic Product Development Project



Device                    NL17SZ17DFT2G
Function                Single Buffer with Schmitt Trigger Input

Datasheet              local  online

Competitor           ON Semiconductor

Package                SOT353

Die Size                 404u X 356u     Thickness  208u

Die Orientation    Active Surface Down

Technology          LVC  5V to 2V

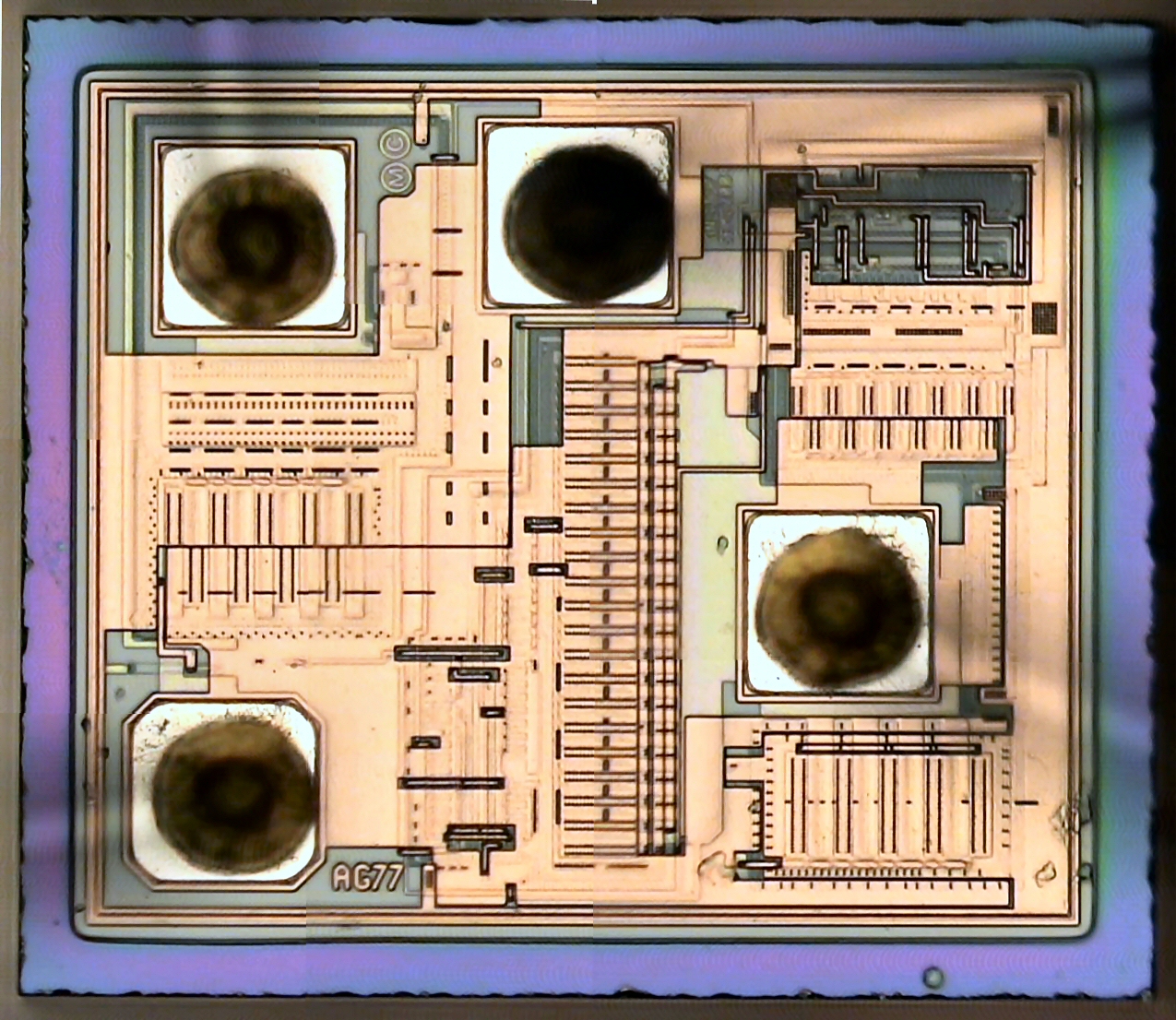

Die Photo



















Die Overview



Observations:
No active circuits under bond pads.







Alternate photo.












Die X-rays     ON   NL17SZ17DFT2G

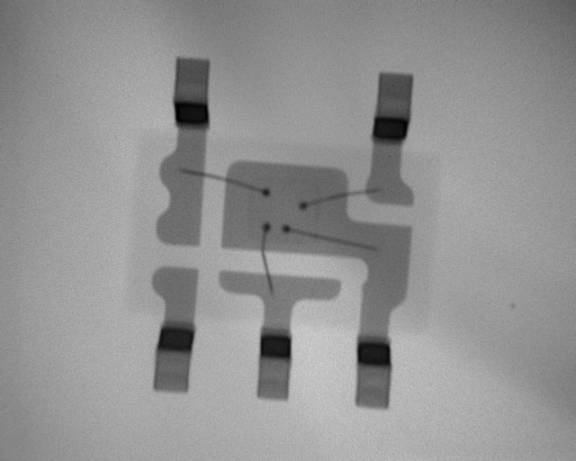

Top of Package
Looking Through Die

Die is Down



Observation:

Large die mounting pad associated with pin three.

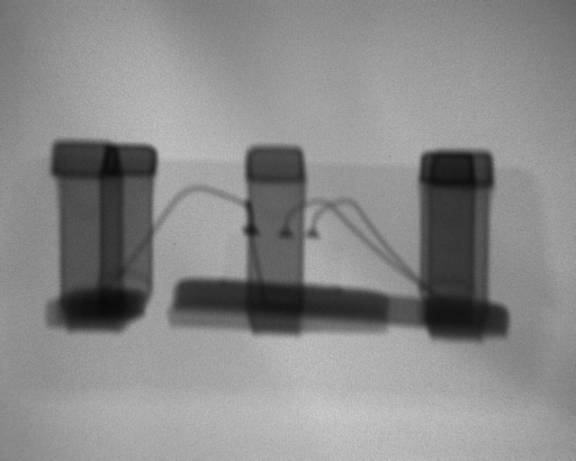

Side View

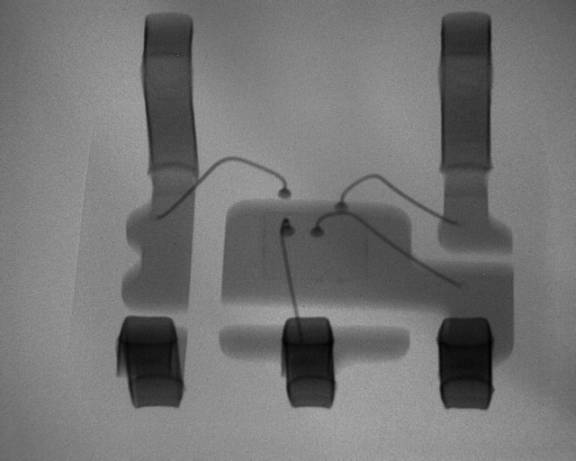

Angled View










Package Details    ON   NL17SZ17DFT2G

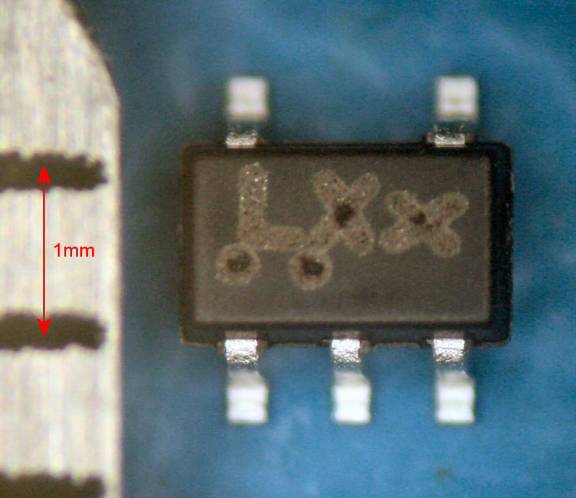

Top View





Size relative to 1mm on ruler.

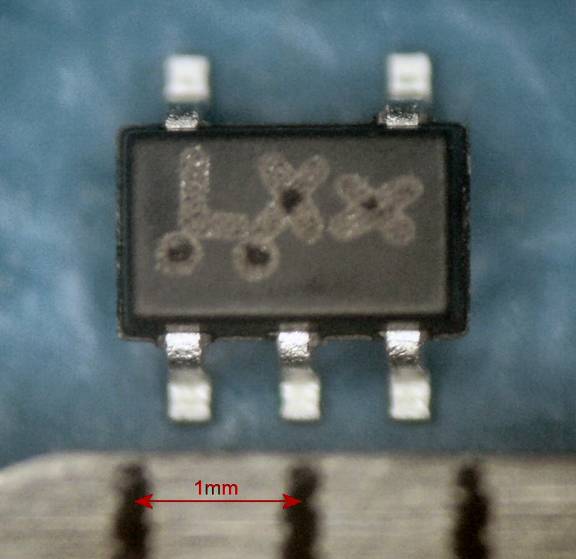

Top View l

Alternate

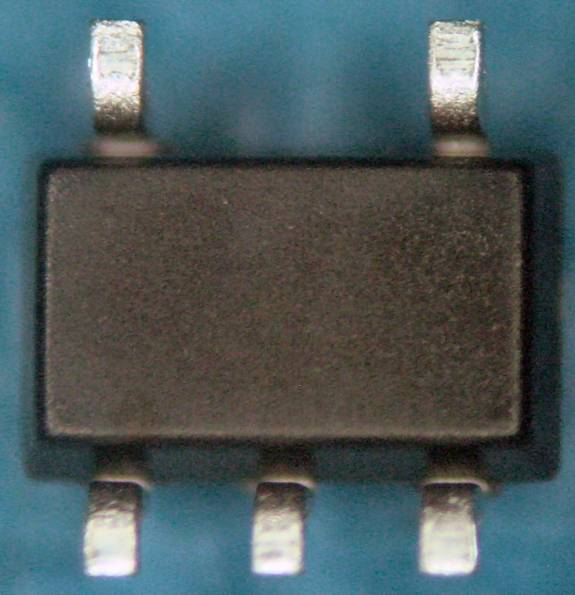

Bottom
