Competitive Analysis



Logic Product Development Project



Device                     M74VHC1G125DFT2G
Function                 Tri-State Buffer  24mA at 3.3V:

Datasheet                local  online

Competitor             ON Semiconductor

Package                  SOT353

Die Size                   370u X 342u    Thickness  208u

Die Orientation      Active Surface Down

Technology            AHC  5.5V – 2.0V

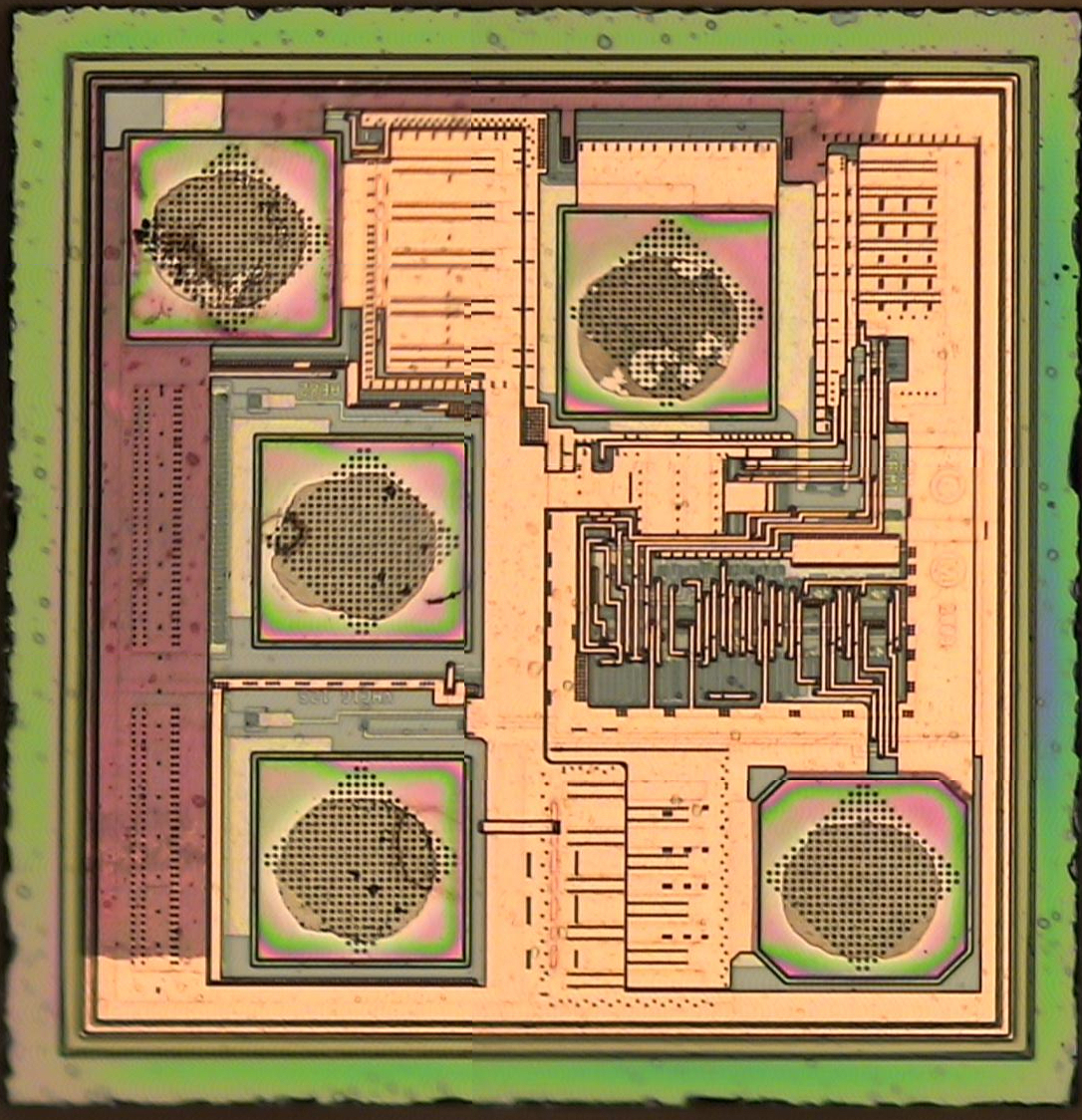

Die Photo



















Die Overview



Observations:
No active circuits under bond pads.












Die X-rays    ON   M74VHC1G125DFT2G

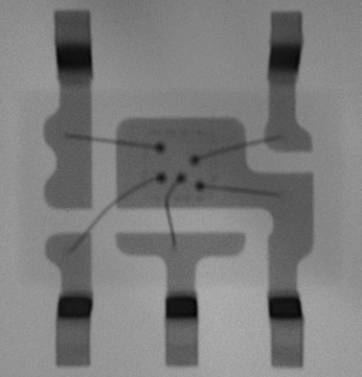

Top of Package
Looking Through Die

Die is Down



Observation:

Large die mounting pad associated with pin three.

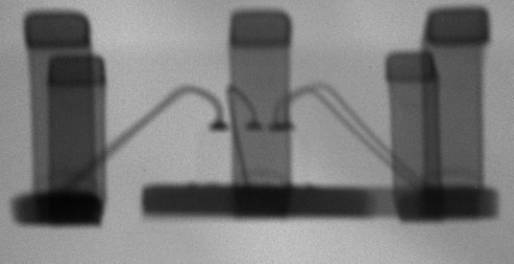

Side View

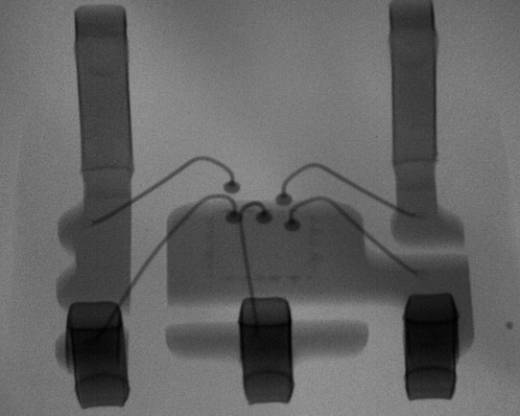

Angled View










Package Details    ON   M74VHC1G125DFT2G

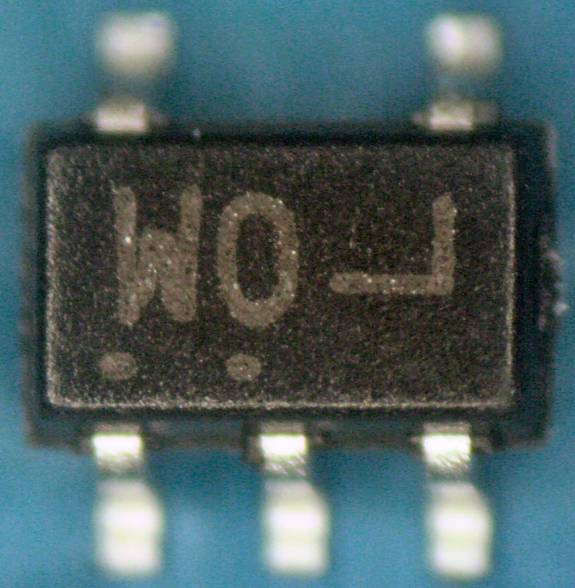

Top View

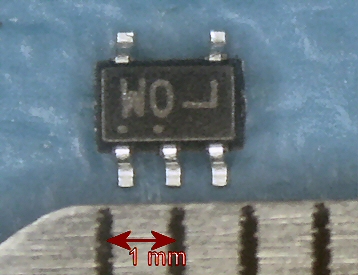

Size relative to 1mm on ruler.











Symbol

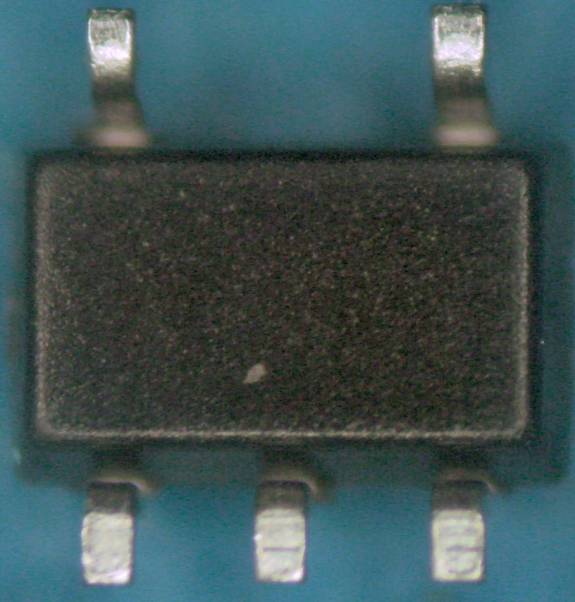

Bottom
