Competitive Analysis

Logic Product Development Project

Device NC7WZ14P6X
Function Dual Inverter with Schmitt Trigger Inputs

Datasheet local online

Competitor Fairchild

Package SC-70-6

Die Size 602u X 378u Thickness 216u

Die Orientation Active Surface Down

Technology LVC 5V to 1.65V

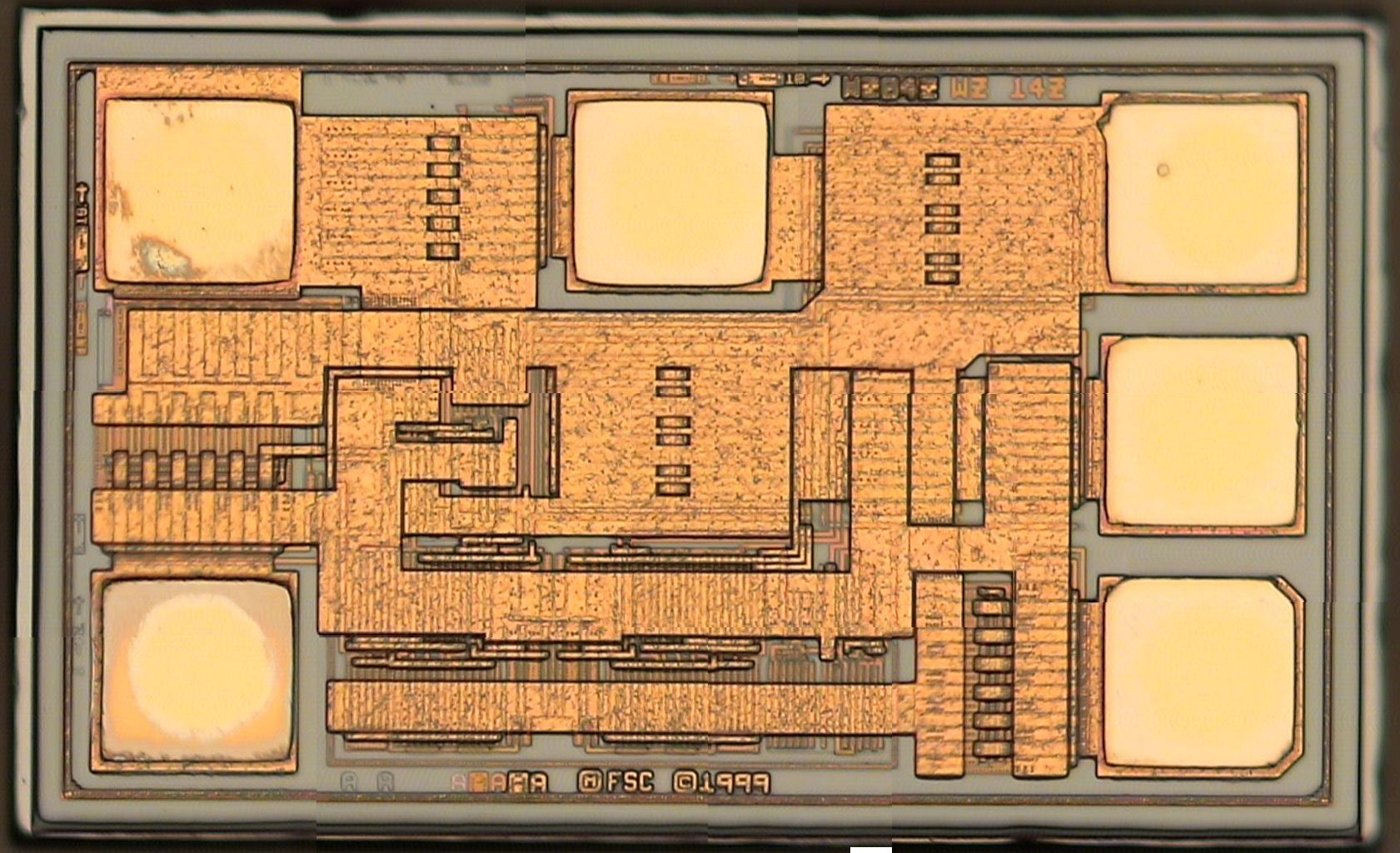

Die Photo
	Die Overview Observations: No active circuits under bond pads. Circa 1999

Die X-rays Fairchild NC7WZ14P6X

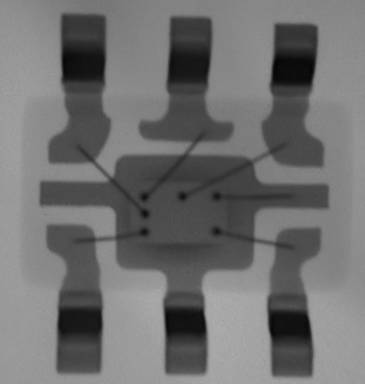

	Top of Package Looking Through Die Die is Down Observation: Large die mounting pad associated with pin two.

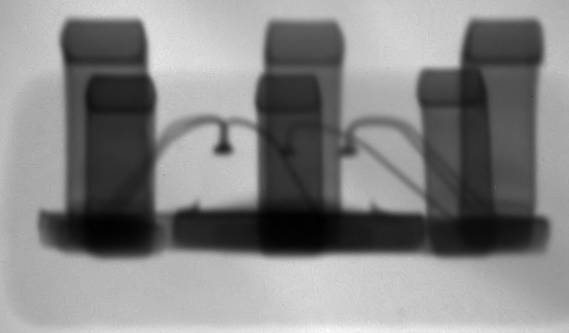

	Side View
	Angled View

Package Details Fairchild NC7WZ14P6X

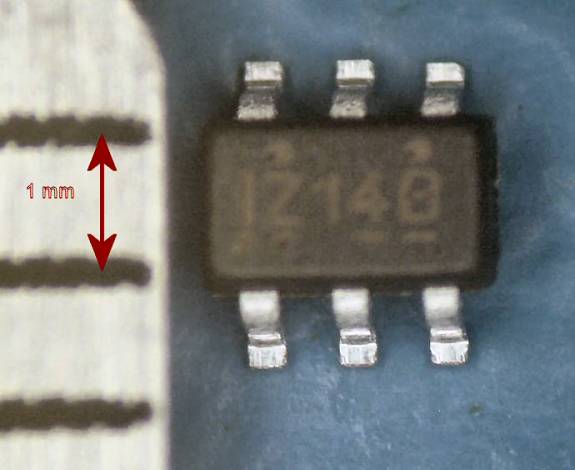

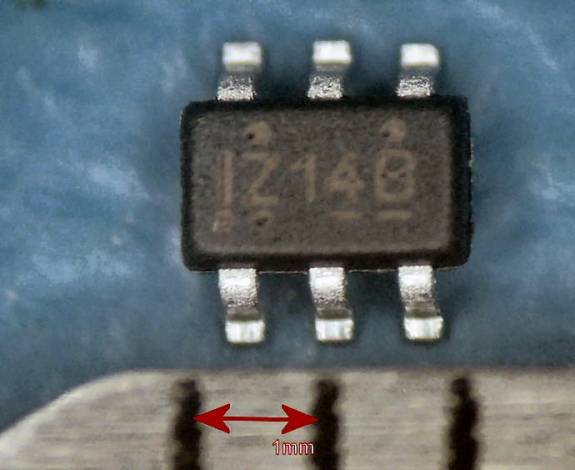

	Top View Size relative to 1mm on ruler.
	Symbol

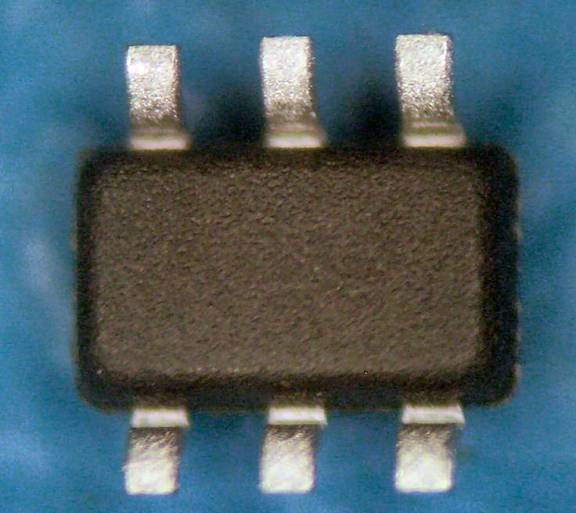

	Bottom
