Competitive Analysis



Logic Product Development Project



Device                   NC7SZU04P5X
Function                Unbuffered Inverter

Datasheet              local  online

Competitor            Fairchild

Package                SC-70-5

Die Size                 420u X 322u   Thickness: 206u

Die Orientation    Active Surface Down

Technology          LVC  5V to 1.65V



Die Photo

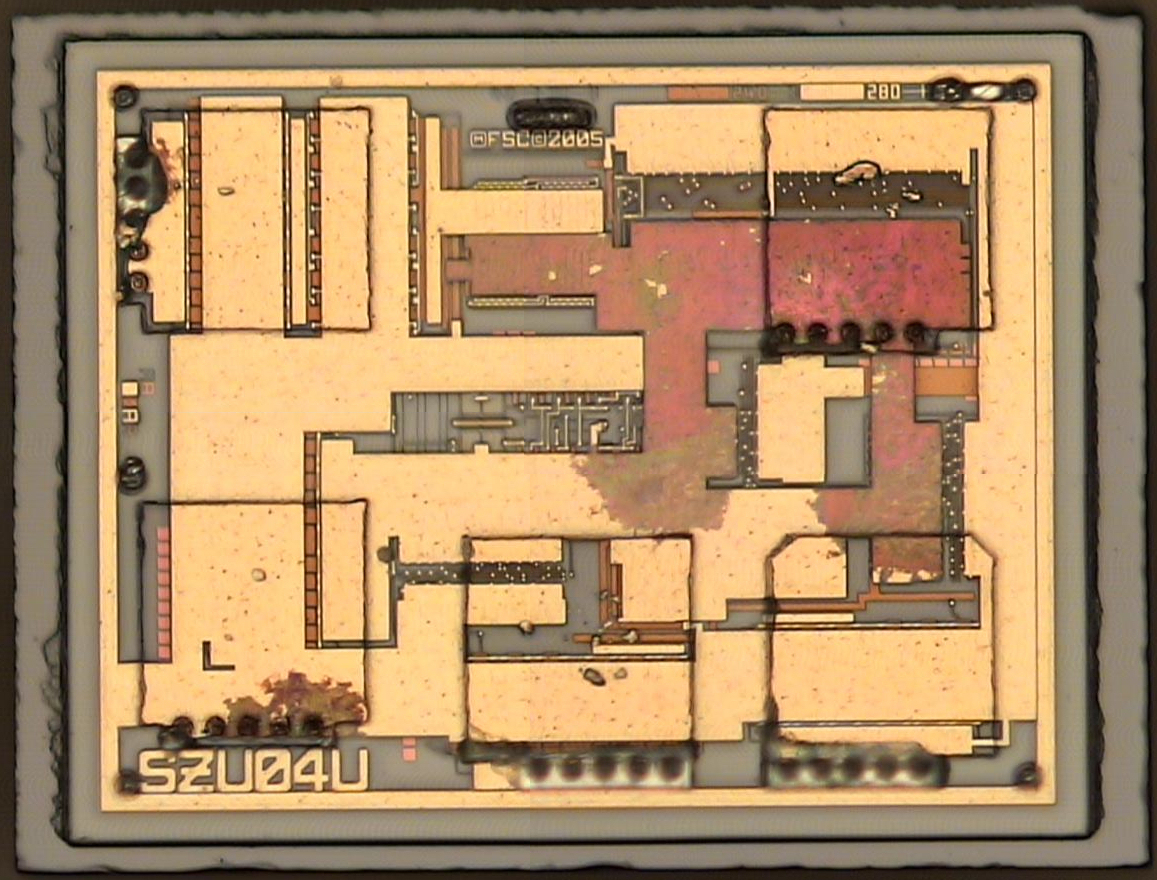

Die Overview



Observations:
Active circuits under bond pads.

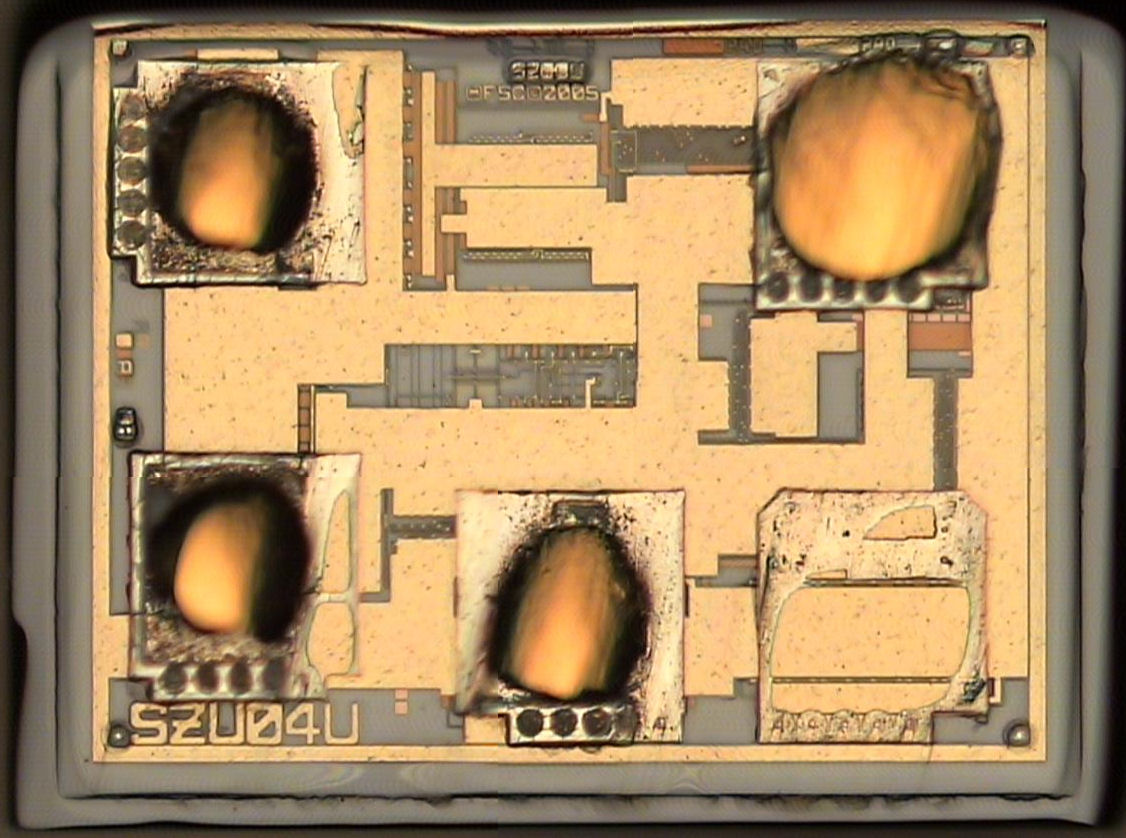

Alternate Photo













Die X-rays      Fairchild NC7SZU04P5X















Top of Package

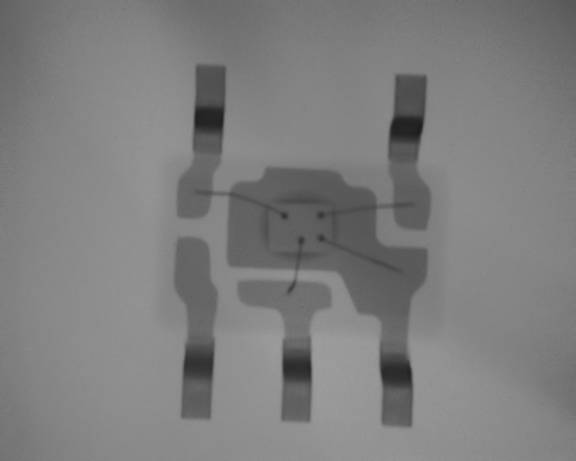

Looking Through Die

Die is Down



Observation:

Large die mounting pad associated with pin three.

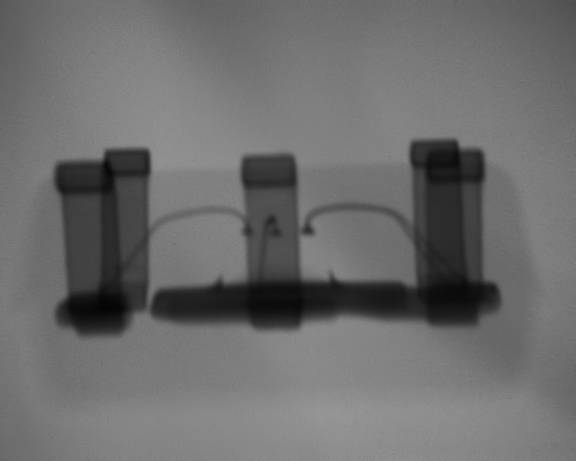

Side View













Angled View



Observation:

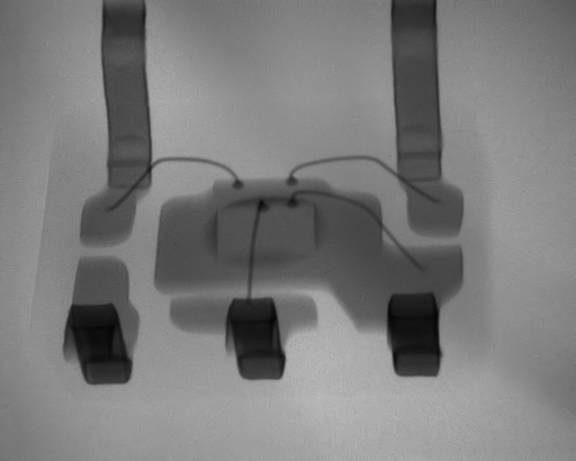

The high-z material in the mount compound makes a noticeable oval apparition appear across top of die..







Package Details    Fairchild NC7SZU04P5X

















Top View

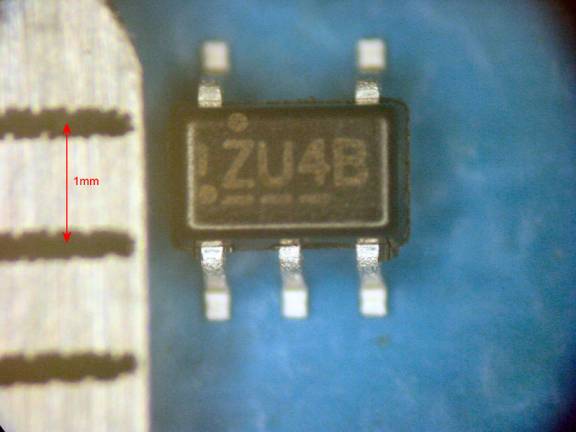

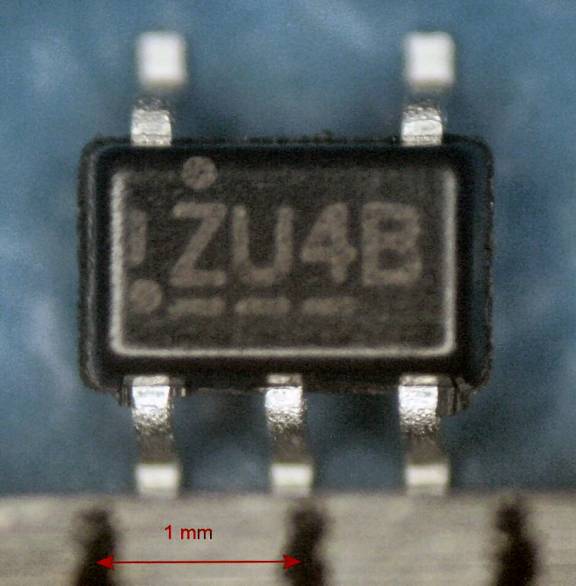

Size relative to 1mm on ruler.











Symbol













Bottom
